| Class Of Excavator |

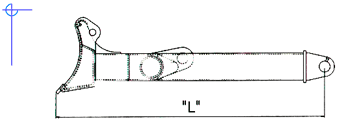

Length "L" |
Width Of Blade "W" |
Weight |
| 1.8 tons |
· 800 mm
|
· 1,100 mm
|
· 48.3 Kg
|
| 2.0 tons |
· 1,080 mm
|
· 1,500 mm
|
· 86.2 Kg
|
| 2.8 tons |
· 1,115 mm
|
· 1,550 mm
|
· 121.6 Kg
|
| 3.0 tons |
· 1,115 mm
|
· 1,550 mm
|
· 120.9 Kg
|
| 3.5 tons |
· 1,116 mm
|
· 1,520 mm
|
· 143.4 Kg
|
| 4.0 tons |
· 1,237 mm
|
· 1,950 mm
|
· 222.5 Kg
|
| 4.5 tons |
· 1,093 mm
|
· 1,880 mm
|
· 156.0 Kg
|
| 5.5 tons |
· 1,237 mm
|
· 2,000 mm
|
· 196.2 Kg
|
| 6.5 tons |
· 1,348 mm
|
· 2,100 mm
|
· 220.7 Kg
|
| 8.8 tons |
· 1,428 mm
|
· 2,300 mm
|
· 326.0 Kg
|
|
|
